$10.00
The WH148 potentiometer can be used to adjust the sound volume, motor speed, brightness and other parameters that are changed by voltage or current.
 |
 |
 |
|
Type
|
Dual Linear |
|
Terminal
|
6 Pin |
|
Material
|
Metal + Carbon Film |
|
Rotation Angle
|
300° ± 10° |
|
Rotational Torque
|
10 – 200 gf.cm |
|
Point Electric Torque
|
50 – 150 gf.cm |
|
Resistance Tolerance
|
±20% |
|
Withstand Voltage
|
1 minute AC 250 V |
|
Rotating Noise
|
Less than 100 mV |
|
Rotation Life
|
10000 cycles |
|
Load Power
|
Curve B: 0.05 W Other than B: 0.025 W |
|
Operating Voltage
|
Curve B: 50 V DC Other than B: 25 V AC |
 |
 |
| Weight | 0.1 kg |
|---|
Popular sets of WH148 potentiometers of different nominal values with colored knobs.
This is an adjustable resistor or variable resistor (variable resistance). It can be used as a rheostat, but structurally it has 3 contacts in its composition, which allows it to be used as a voltage divider. The change in resistance occurs when the handle is turned.
Metal handle rotary switch potentiometer, mainly for the volume. Mainly suitable for: mixer, audio, car audio, television, power amplifier, electronic message device, headphones, radios, toys, DVD / VCD, medical equipment, lamps and lanterns that move light speed, etc.
Electronic building block double linear potentiometer module. For Arduino mixer linear sliding resistance.
9964 in stock
B***b –

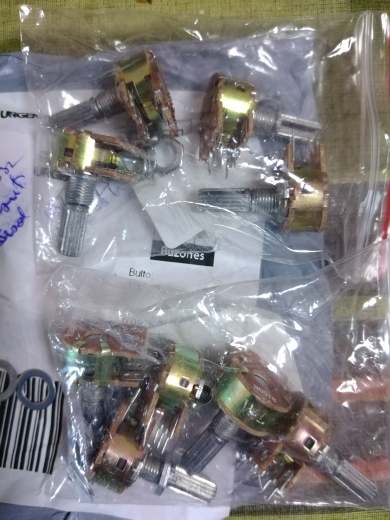

This item arrived but only arrived 9 pieces instead of 10 arrived closed so it was not opened in customs is store error
B***r –
The linear 10K-ohm potentiometers just received. Extremely fast shipping to me here in New Zealand, only 10 days from order via AliExpress standard shipping. Well wrapped in foam and then inside a bubble-wrap envelope, they arrived in very good condition The pots are useful to control the audio gain in my projects. Excellent service and I am looking forward to using. I am very happy. Thank you. Kind regards, Brian
J***n –
All right!
