Sale!

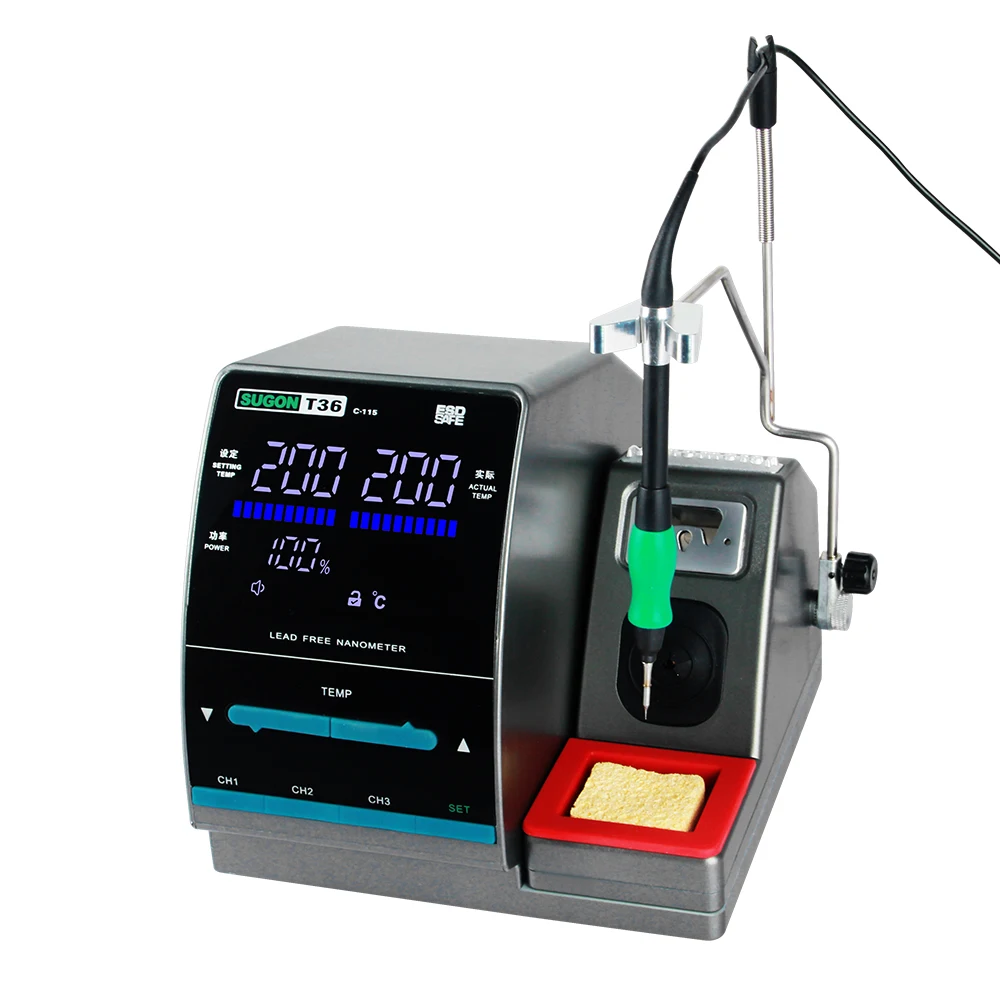

Sugon T36 Multifunctional Soldering Station

$362.00$581.00

The soldering station equipped soldering iron tip replacement rack, you can use it to replace the high temperature soldering iron tip on the job, without using pliers or other tools to disassemble.

T36-01T36-02T36-03
110 V220 V
Clear

Description

Product Details

Specifications:
  • Power: 120 Watts
  • Temperature range: 200 – 450 ℃ / 392 – 842 ℉
  • Equipment Voltage: 110 Volts
  • Equipment Size: 160 x 180 x 155 mm / 6 x 7 x 6.1 in
Advanced Features:
  • Configuration upgrade can quickly heat up in 4 seconds, faster and more stable than T26
  • Safe sleep mode
  • Temperature memory storage function
  • Temperature unit conversion (℉ / ℃)
  • Real-time temperature display





Sleep Mode

  • When the handle is placed on the handle stand, the soldering station will start the automatic sleep mode, so as to avoid damage to the soldering iron tip caused by long-term high temperature and prolong its service life

Multifunction

  • Long press the temperature up or down key to quickly adjust the desired temperature 392 – 842 °F (200 – 450°C), and short press for precise adjustment
  • Short press SET to adjust between ℉ and ℃

Soldering Iron Tip Replacement Rack

  • The soldering station equipped soldering iron tip replacement rack, you can use it to replace the high temperature soldering iron tip on the job, without using pliers or other tools to disassemble





Temperature Preset Button

  • Machine is equipped with three temperature memory storage function buttons CH1 / CH2 / CH3, you can use it to set different common working temperatures, no need to adjust the value every time you work
  • Operating Instructions: After setting the desired temperature, long press “CH1 / CH2 / CH3” to save, short press to use
Sugon T36 Multifunctional Soldering Station





Quick Operation:

  1. Short press SET button once to switch ℃ / °F display
  2. Long press SET (lock / unlock) to set storage channel
  3. When the power is off, press and hold the SET key for about 3 seconds to automatically enter the temperature calibration interface, press the up and down keys to adjust the temperature, after the adjustment is completed, press the SET key to save and exit
  4. Button state, press and hold the CH1 button for about 3 seconds to turn on / off the buzzer sound



Specifications

Features:

  • Model: SUGON T36
  • Power Consumption: 85 W
  • Input Voltage: AC 110 V / AC 220 V 50 / 60 Hz
  • Range of Temperature: Decide by working mode (200 – 450 ℃ / 392 – 842 °F)
  • Temperature Stability: ± 2 ℃ / Without air flow and no load
  • Tip to Ground Resistance: < 1 Ω (DC)
  • Tip to Ground Potential: < 25 mV (True RMS)
