Description
The soldering iron used in this soldering station is a brand new soldering iron tip. Due to the unstable resistance of the new soldering iron tip, the temperature will jump or ERROR, which is normal. After several times of use, the stability will gradually stabilize.
 |
BOOST FunctionShort press the encoder, use the Boost functionShort press the encoder, Use the Boost function, reinforce the temperature of 50 °C, strengthen time 30 seconds! Can help you better solder large solder joints.After choosing strengthen the time function, short press the encoder and enter the time or temperature setting. The Time Setting Range: 0 – 99 minutes. The Temperature Setting Range: 10 – 80 °C.
|
|
 |
 |
 |
|
AC 100 – 260 V power Interface DC 24 V 3 A power interface Pwer supply inside is grounded, so It is surely safe. 1 1
|
T12 special power board 108 W meets T12 instantaneous power requirements No downtime, long life, safe and stable. 1 1 |
5pin M8 handle and solder tips lead-free, weld firmly 1.1 m cable wire, 5 cores Easy to replace, heating fast, long service life. Use under 400 degree temperature (± 20 degree), it can have 50000 solder joints. |
Ordinary solder melting point is 183 ℃, normal solder melting point is 227 ℃, usually the welding temperature is 300 – 380 ℃, 380 ℃ is the temperature of the dividing line, higher than 380 ℃, iron head oxidation and loss is extremely fast, seriously affect the heating core life The Higher than 380℃ temperature display will be beating, the higher the temperature, the greater the beating! Recommended in the 300 – 380 ℃ for welding work, most of the work can be carried out, the temperature beating is normal, does not affect the use!
 |
 |
 |
| Multiple function menu
1 1 |
Input: AC 110 – 240 V Power Supply: 24 V 5 A Temerature:100 – 480 C Tin Melting Time: < 8 S Size: 120 x 88 x 38 mm Display Size: 2.6 in OLED
|
The main is light, only 370 g Easy to carry and safe to use 1 |
NOTE: Iron tip do not work continuously high temperature, high temperature work is easy to damage the tip!
V***s –

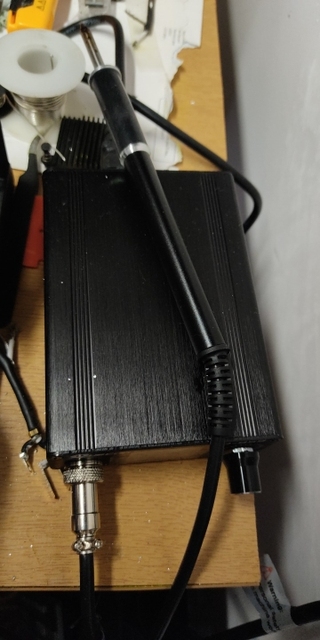

Perfect tool. Quick to heat, light, comfortable. Using without stand without any problem. Fantastic value for money
