Sale!

STC T12-956 Professional Digital Soldering Station

(2 customer reviews)

$74.00$115.00

It is completely made of metal, all cables are of the highest quality, resistant to high temperatures, the microcontroller eliminates any deviations from the set temperature.

T12-956AT12-956BT12-956CT12-956DT12-956E
Clear

Description

Soldering station that looks very laconic, but behind the restrained appearance hides an impressive set of functions. The temperature adjustment range is from 200 to 480 °C. All settings are displayed on an informative OLED display. The device 100 % meets even professional requirements. It is completely made of metal, all cables are of the highest quality, resistant to high temperatures, the microcontroller eliminates any deviations from the set temperature.



BOOST Function

The BOOST function can instantly increase the temperature when you press the encoder short. Can help you better solder large solder joints. After choosing strengthen the time function, short press the encoder and enter the time or temperature setting. The time setting range: 0 – 99 minutes. The temperature setting range: 10 – 80 °C.

The M8 metal handle

M8 made of all metal

Anti-slip insulation

New appearance design

Unique 4-pin handle

Features

  • Quick heating
  • Vibration wake up
  • Auto power off
  • Auto sleep
111111111111

1

1

1



AC 100 – 260 V Power Interface

DC 24 V 4 A power interface

Power supply inside is grounded, so it is surely safe.

1.Calibration

2. Auto sleep

3. Auto power off

4. Boost duration

5. Boost degree

6. Wakeup method

7. Buzzer switch

8. Battery guard

9. Firware

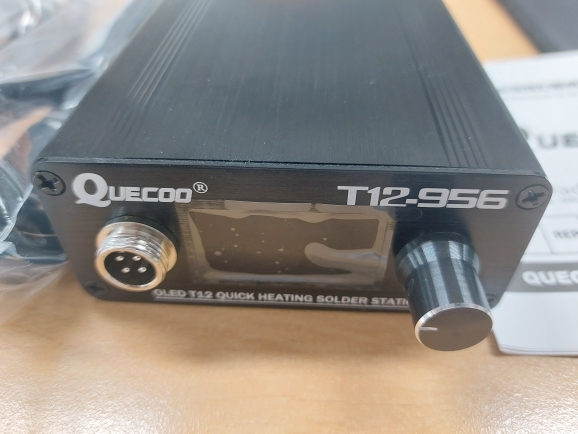

1.3 inch Display

The T12-956 soldering station is made of metal case, 1.3-inch display and brown acrylic screen to make the display data clearer.

8 S Melt of Tin

Full power operation

When the T12-956 soldering station is operated under 110 – 240 Voltage environment, lead-free tin wire can be used to achieve 8 seconds melt of tin.

T12-M8 Handle

  • Black metal material
  • 1.1 m cable wire, 4 cores
  • High Temperature Resistance



Matters Needing Attention:

When using the T12 iron tip please tighten the nut for soldering head to avoid falling and damaging the iron tip. The temperature will be reached above 350 °C of soldering station is used for 40 minutes, and the temperature of the front end of the handle will be reached 50 – 60 °C. When the new T12 soldering iron tip is used for the first time, host will appear temperature jump and display ERROR, it will become a normal phenomenon due to the heating of the inner galvanic couple part of the iron tip. After repeated use several times, the temperature will be stabled.

Additional information

Weight 0.3 kg

2 reviews for STC T12-956 Professional Digital Soldering Station

  1. C***k

    Nice product with nice price. took almost 5days based on Door-to-door condition.

  2. F***o

    Top product but had a combined with store and was not long
