Description
PSG9080 is the programmable function/arbitrary wave signal generator. It can output sine wave, square wave, triangle wave, pulse wave, and arbitrary wave, etc. The frequency range of the instrument is up to 80 MHz, with modulation, frequency sweep, measurement signal frequency and programming functions, etc. It can simultaneously display the output signals, amplitude, phase, duty cycle and frequency. This series has excellent amplitude – frequency characteristics, multifunctional, high performance, cost effective, portable and other characteristics provide new options for education, research and development, production, testing and other industries.
- The instrument is exquisite in appearance and equipped with a 3.5-inch high-resolution color LCD screen to bring a new visual experience.
- The type of waveform output (such as sine wave, square wave, triangle wave, arbitrary wave etc.), output time, and output sequence can be freely formulated to realize automatic work.

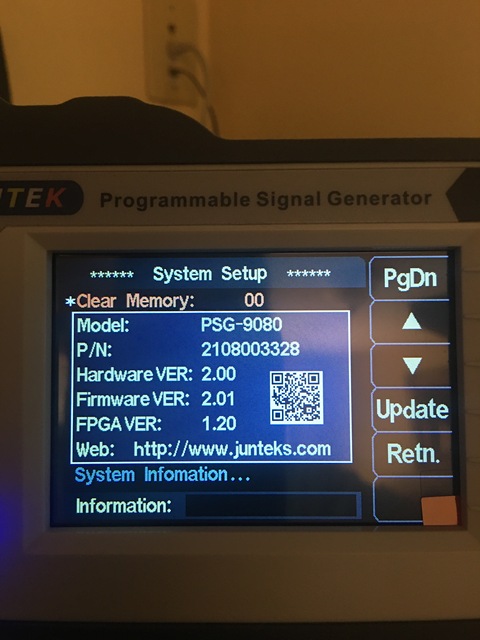

- Firmware upgrade can be updated at any time to fix bugs, or used for your special customization needs. Press the corresponding soft key to confirm entering the update mode, and perform a one-key firmware upgrade by connecting with the PC software.
- The frequency, amplitude and duty cycle of the output can be controlled by an external analog voltage signal to achieve voltage-controlled sweeping frequency, sweeping amplitude and sweeping duty cycle, which are widely used in industrial debugging.
- The modulated waveforms can be output in single channel or dual channel. Modulation: The process of adding information from a signal source to the carrier to make it suitable for channel transmission. It is the technology that makes the carrier wave change with the signal.
- The sampling rate of up to 300 MSa/s can obtain more waveform data per unit time, thus making the displayed waveform more accurate.
- The same or different function signals or arbitrary waveform signals can be output simultaneously, all parameters can be adjusted independently, the phase difference between the two channels is continuously adjustable from 0 to 359.9 degrees, the signal frequency can be up to 80MHz, and the output signal can be within 1 MHz Up to 25 Vpp.
- Sine wave, square wave, saw tooth wave, or arbitrary wave can be used to generate burst signals, the number of periods is continuously adjustable between 1 – 1.000.000.000
- The pulse width and the pulse period time of the pulse wave are digitally and accurately adjustable, enabling a wide range of pulse waveforms to be accurately set without jitter output.
| Signal Generator Specifications | |||
| Number of Channels | 2 | ||
| Bandwidth Requirements | 80 MHz | ||
| Sample Rate | 300 MBit / s | ||
| Frequency Range | 1 nGc – 80 MHz | ||
| Vertical Resolution | 14 bits | ||
| Memory Depth | 8 Kb | ||
| Waveforms | Sinusoidal, rectangular, sawtooth, pulse, noise, DC, CMOS, EXP, Lorentz, amplitude and frequency modulation, arbitrary | ||
| Frequency Specifications | |||
| Sinusoidal Signal | 1 kHz – 80 MHz | ||
| Rectangular Signal | 1 kHz – 30 MHz | ||
| Pulse Signal | 1 kHz – 30 MHz | ||
| Sawtooth Signal | 1 kHz – 50 MHz | ||
| Custom Signal | 1 kHz – 50 MHz | ||
| Permission | 1 nGc | ||
| Accuracy | ± 5 ppm | ||
| Specifications of a Sinusoidal Signal | |||
| Full Harmonic Distortion | ≤ 0.5 % (1 kHz) | ||
| Specifications of a Rectangular Signal | |||
| Rise / Fall Time | < 10 ns | ||
| Blowout | < 10 % | ||
| Skewness | ≤ 0.1 % | ||
| Specifications of the Sawtooth Signal | |||
| Linearity | ≤ 1 % (< 1 MHz) | ||
| Symmetry | ≤ 1 % (< 1 MHz) | ||
| Pulse Signal Specifications | |||
| Frequency Range | 1 kHz – 30 MHz | ||
| Pulse Width | 5 ns – 4 ns | ||
| Pulse Period | 10 ns – 40 ns | ||
| Duty cycle | 0.01 – 99.99 % | ||
| Rise / Fall Time | ≤ 10 ns | ||
| Blowout | < 10 % | ||
| Characteristics of an Arbitrary Signal | |||
| Frequency Range | 1 kHz – 50 MHz | ||
| Memory Depth | 8 Kb | ||
| Vertical Resolution | 14 bits | ||
| Minimum Rise / Fall Time | 10 ns | ||
| Output Signal | |||
| Amplitude | ≤ 1 MHz: 2 mV – 25 V 1 MHz – 11 MHz: 2 mV – 10 V 11 MHz – 60 MHz: 2 mV – 5 V 60 MHz – 80 MHz: 2 mV – 3.6 V |
||
| Permission | 1 mV | ||
| Impedance | 50 ohms | ||
| Protection from | Short circuit protection | ||
| Scan Specifications | |||
| Carrier Wave Shape | Sinusoidal, rectangular, pulsed, arbitrary (except DC) | ||
| Type | Linear or logarithmic | ||
| Scan Time | 0.01 s – 640 s | ||
| Modulation Specifications | |||
| Types of Modulation | AM, FM, PM, ASK, FSK, PSK, PWM, BURST | ||
| Carrier Wave Shape | Sinusoidal, rectangular, pulsed, arbitrary (except DC) | ||
| AM | |||
| A Source | Internal / External | ||
| Modulating Waveform | Sinusoidal, rectangular, pulse, noise, sawtooth | ||
| Frequency | 1 MHz – 1 MHz | ||
| FM | |||
| A Source | Internal / External | ||
| Modulating Waveform | Sinusoidal, rectangular, pulse, noise, sawtooth | ||
| Frequency | 1 MHz – 1 MHz | ||
| PM | |||
| A Source | Internal / External | ||
| Modulating Waveform | Sinusoidal, rectangular, pulse, noise, sawtooth | ||
| Frequency | 1 MHz – 1 MHz | ||
| Phase Deviation | 0° – 360° | ||
| ASK, FSK, PSK | |||
| A Source | Internal / External | ||
| Modulating Waveform | Square wave with a fill factor of 50% (1 MHz – 1 MHz) | ||
| PWM | |||
| Carrier Waveform | Pulsed | ||
| Pulse Period | 0.01 microseconds – 40 seconds | ||
| Pulse Width | 0.001 microseconds – 4 seconds | ||
| BURST | |||
| Mode | Single, automatic | ||
| A Source | Manual, BURST CH2, external (AC), external (DC) | ||
| Pulse Number | 1 – 1000000000 | ||
| Frequency Meter | |||
| Range | 0 – 4294967295 | ||
| Connection | AC, DC | ||
| External Modulation Input Specifications | |||
| Input Signal Amplitude Range | 0 – 3 V | ||
| Input Frequency Range | DC-20 kHz | ||
| Voltage Monitoring Specifications | |||
| Waveform Carrier | Sinusoidal, rectangular, sawtooth, arbitrary (except DC) | ||
| Functions | Frequency, amplitude, duty cycle | ||
| Range | 0 – 5 V | ||
| Programming Features | |||
| Operating Mode | Debugging, normal | ||
| Keeping | P00 – P99 | ||
| Programming Time | 0 – 99 s | ||
| General Features | |||
| Display | 3.5 in TFT LCD, 480 x 320 | ||
| Interface | USB, TTL | ||
| Number of Memory Cells | 100 | ||
| AC Power Supply | 84 – 264 V, 47 – 63 Hz | ||
| DC Power Supply | 5 V ± 0.5 V, 3A | ||
| Power Consumption | < 30 W | ||
| Fuse Box | 250 V AC, T3, 15 A | ||
| Storage Temperature | 0 ℃ – 40 ℃ | ||
| Humidity | < 80% | ||
| Overall Dimensions | 247 x 243 x 102 mm | ||
| Equipment | JUNTEK PSG9080 signal generator – 1 pcs
Power Cable-1 pcs |
||
M***n –
The unit was well packaged for the trip from China to the USA. Order was placed 2022-05-10. Order was shipped 2022-05-11. Very quick, Good job! Order was received 2022-06-16. Transportation time was a little long (36 days) but ok. The unit seems to perform very well. Controls are very intuitive for the user. Well Done! For the stores information on future shipments, they may want to check the power cable and make sure it will connect to the unit. The connector on the back of the unit is appx. 24.01mm wide. The power cable that was sent was 24.57mm wide. It would not connect. I replaced with a power cable I have and it works ok. Thanks
M***r –
The item arrived to Australia 11 days quicker than advertised and it was packed well. The item works as advertised and is good value for money. It took me a while to figure out that the separate tiny circuit board in the carton is an external WiFi module that plugs into the rear of the signal generator. I have not tested that yet.
L***r –
Excellent Product very well finished
